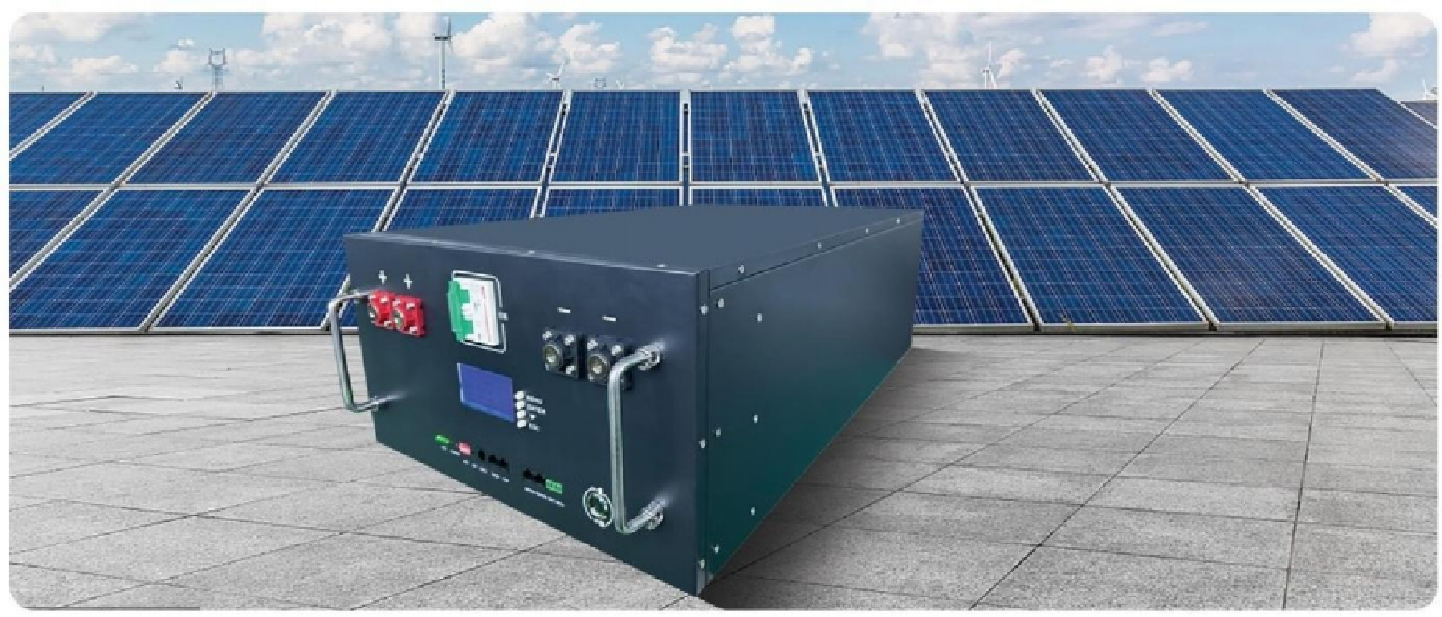

51.2V RACK MOUNTED LITHIUM ENERGY STORAGE BATTERY (BLACK VERSION)
Product Advantages
●Built-in LiFePO4 Battery cells. Large capacity,long cycle life,high safety, environmental protection
● Intelligent communication
●Support parallel capacity expansion,frame design structure,to meet the demand of large capacity power
| 产品型号
Product Model |
LN-48100 | LN-48200 | LN-48300 |
| 标称电压
Nominal voltage |
51.2V | ||
| 标称容量
Nominal capacity |
100Ah/5120Wh | 200Ah/10240Wh | 300Ah/15360Wh |
| 电芯类型
Cell type |
磷酸铁锂 (LiFePO₄ ) | ||
| 组合方式
Composition |
16S1P | 16S1P | 16S1P |
| 充电截止电压
Charging cutoff voltage |
58.4v | ||
| 放电截止电压
Discharge Cut-off Voltage |
40V | ||
| 最大持续放电电流
Maximum continuous discharge current |
100A | 200A | 200A |
| 瞬间放电电流
Instantaneous discharge current |
200A | 400A | 400A |
| 显示屏
Display |
LCD显示屏/触摸显示屏
LCD display screen/touch screen display screen |
||
| 标准充电电流
Standard charging current |
<50A | <100A | <100A |
| 标准放电电流
Standard discharge current |
100A | 200A | 200A |
| 充电适合温度
Charge suitable temperature |
0℃ ~45℃ | ||
| 放电适合温度
Discharge suitable temperature |
-20℃~65℃ | ||
| 电池组尺寸
Battery pack size |
452*480*160mm | 580*440*245mm | 725*440*240mm |
| 包装尺寸
Package size |
570*560*265mm | 680*520*420mm | 825*540*340mm |
| 电池组净重
Net weight of battery pack |
44Kg | 79Kg | 108Kg |
| 电池组毛重
Gross weight of battery pack |
46Kg | 90Kc | 120Kg |
| 通讯接口
Communication interface |
CAN/RS232/RS485 | ||
| 冷却方式
Cooling method |
风冷
Forced air cooling |
||
| 运输分类
Transport classification |
UN38.3/MSDS/海运/空运
UN38.3/MSDS/Sea/Air |
||
| 电池保护功能
Battery protection function |
过流、过压、过充、过放、短路等
Overcurrent,overvoltage,overcharging,overdischarge,short circuit,etc |
||
