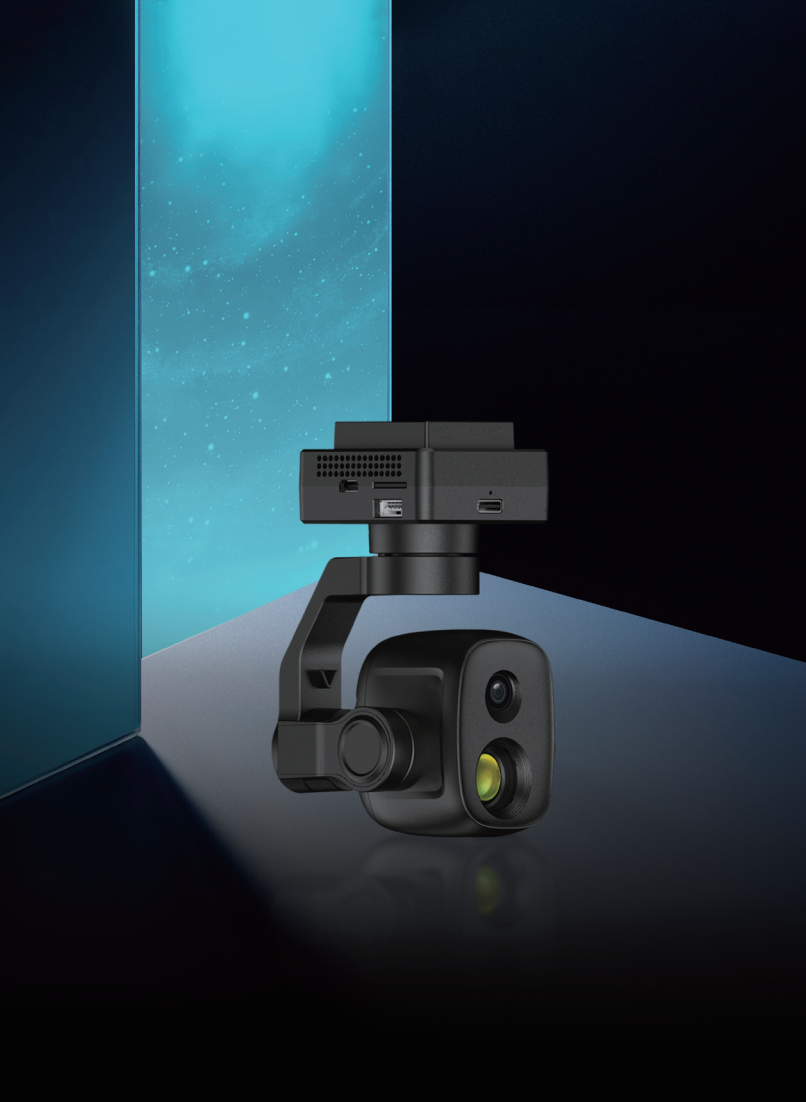

ZT6 Mini Dual-Sensor Optical Pod
ZT6 is a mini-size and lightweight dual sensors optical pod integrated with an optical sensor and a thermal imaging sensor to collaborate efficiently.
With a 640X512 high resolution thermal imaging sensor, 1/2.8 inch Sony CMOS, supports 4K HD Video Recording and Photography.
Optional powerful AI identify tracking designed by TOPTECH , Yaw Axis 540-Degree Rotation, abun-dant gimbal control interface compatible with both TOPTECH links and third-party
links . High accu-racy and high collaboration control algorithms ensure stable imaging during flight. In a word,ZT6 optical pod is a rare and good payload for multi-rotors, VTOLs, and
robotics .
| Items | Specs |
| Controllable Yaw Angle | ± 270° |
|
Optical Camera |
6X Digital Zoom, 4K, Sony 1/2.8 Inch CMOS, 8MP Effective Resolution |
|
Thermal Camera |
640X512, 2X Digital Zoom
Focal Length: 13mm / F1.0 Fixed Focus & Athermalization Point / Full Screen / Selected Area Measure Temperature |
| Video Output | Ethernet, Micro-HDMI, CVBS(AV) |
| Control Signal Input | S.Bus, UART, Ethernet UDP/TCP |
| Product Dimension
(Including Anti-Vibration Board) |
73.5*75*131.5 mm |
| Product Weight
(Including Anti-Vibration Board) |
197 g |
